FirePak and Pyrogen controllers for Marine Applications
Not all fire control pannels are equal, read more
ALL NEWRANGE OF FIRE
from Artek
FirePak and Pyrogen controllers for Marine Applications
Not all fire control pannels are equal, read more
ALL NEW
from Artek
 |
 |
 |
 |
| 2-zone with automatic discharge and system isolation |
2-zone with automatic discharge |
2-zone detection manual release |
4-zone detection manual release |
adds another system to there line of alarm panels
New system details
Description: This panel is for the
monitoring and controlling
of pyrogen fire extinguishing systems.
The system is built to fit in to
standard dashboards & instrument panels. The panel is designed to
monitor various sensors and activate outputs to control fire
extinguishers in
the event of a fire being detected. The system monitors the inputs both
to
detect actual alarm or fire situations, and to check for faults in the
system
itself. There is also a comprehensive test mode that can be used both
during
production, installation and servicing
of the system. The panel components
are based around a low-power microcontroller, which controls the
system. The
range of the panels covers all possible control and discharge
scenarios. The
panel has membrane switches (excluding isolation) that allow using
these panels
as splash proof.
Application: Marine (pleasure crafts, fishing vessels and boats), transport (buses, trucks, cars), mobile equipment, industrial, domestic.
Fire suppressants: Any commercial fire suppressant, such as Pyrogen, can be used with the panel.
Specification: Dimensions: 143mm high, 84mm wide, 31mm deep (flush-mounting 20mm). Enclosure material: ABS plastics. Operating voltage: 12-30VDC. Operating current: 53mA on 12V, 78mA on 24V. Power supply inputs:Main and backup. Number of fire
detector zones: 2 & 4. Acceptable detectors: All commercial
thermal,
photo-optical and ionization detectors, manual call points, and
temperature-sensitive detector wires. Max number of detectors per zone:
30.
Detector operating voltage: Same as power supply voltage. Outputs:
Siren, max
0.5A at 12 or 24VDC. Discharge: max 1A at 12VDC and 2A at 24VDC.
Application: Marine (pleasure crafts, fishing vessels and boats), transport (buses, trucks, cars), mobile equipment, industrial, domestic.
Fire suppressants: Any commercial fire suppressant, such as Pyrogen, can be used with the panel.
Specification: Dimensions: 143mm high, 84mm wide, 31mm deep (flush-mounting 20mm). Enclosure material: ABS plastics. Operating voltage: 12-30VDC. Operating current: 53mA on 12V, 78mA on 24V. Power supply inputs:
Mounting: Vertical or horizontal. Wiring
is from the back of the base. A flat
base is also available as an accessory for flush-mounting. It is made
of 1.5mm
steel, and powder-coated matt black reducing the total panel thickness
by 11mm.
Output: The siren
output can be used to operate audio-visual alarms such as strobe lights
and
sirens for the purpose of fire alert, as well as shutting down exhaust
fans and
closing ventilation holes to prepare for suppressant discharge.
Indications: The panel has
LED indicators for main and backup power, circuit 1 and 2 alarms,
fault,
isolated and discharge.
Fault sensing: The panel has a comprehensive fault monitoring system. It monitors open-circuit of wiring to the detectors, the siren and the fire suppressant. It also monitors internal malfunctions. It is able to detect faults in the LEDs on the panel.
Accessories: The following accessories are supplied with the panel: 2 x 4.7K ohm end-of-line resistors for the detector circuits, 1 x 1N4004 end-of-line diode for the siren, 1 x 1N5404 charger diode, 1 x operator’s manual.
Optional: The following accessories are available: flush-mounting flat base, Pyrogen 1 or 4-way monitoring junction box, siren booster for high current output build with EOL, red breakglass for alarm, or yellow breakglass for discharge, wide range of detectors including fixed-temperature linear heat, probe and flame detectors, 12V 7AH or 24V battery, battery box.
More details and accessories at http://www.artek.net.au/index.php
Systems fully monitored, fully automatic with a manual back up
Of course our other Alarm Panels are still available
Monitored and Automatic with fire cord Fault sensing: The panel has a comprehensive fault monitoring system. It monitors open-circuit of wiring to the detectors, the siren and the fire suppressant. It also monitors internal malfunctions. It is able to detect faults in the LEDs on the panel.
Accessories: The following accessories are supplied with the panel: 2 x 4.7K ohm end-of-line resistors for the detector circuits, 1 x 1N4004 end-of-line diode for the siren, 1 x 1N5404 charger diode, 1 x operator’s manual.
Optional: The following accessories are available: flush-mounting flat base, Pyrogen 1 or 4-way monitoring junction box, siren booster for high current output build with EOL, red breakglass for alarm, or yellow breakglass for discharge, wide range of detectors including fixed-temperature linear heat, probe and flame detectors, 12V 7AH or 24V battery, battery box.
More details and accessories at http://www.artek.net.au/index.php
Systems fully monitored, fully automatic with a manual back up
Of course our other Alarm Panels are still available
 |
 |
| Our Sp-1 is still available |

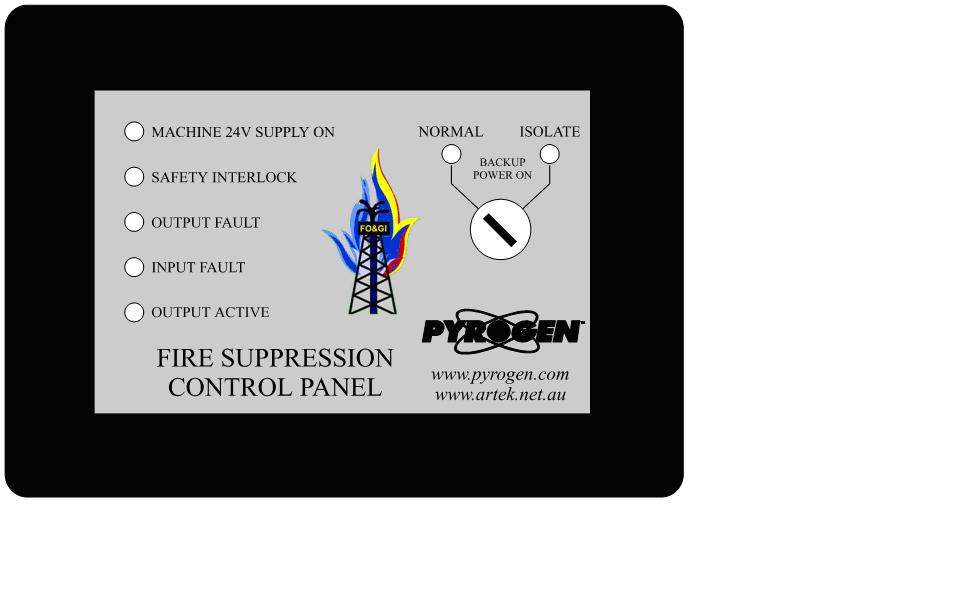

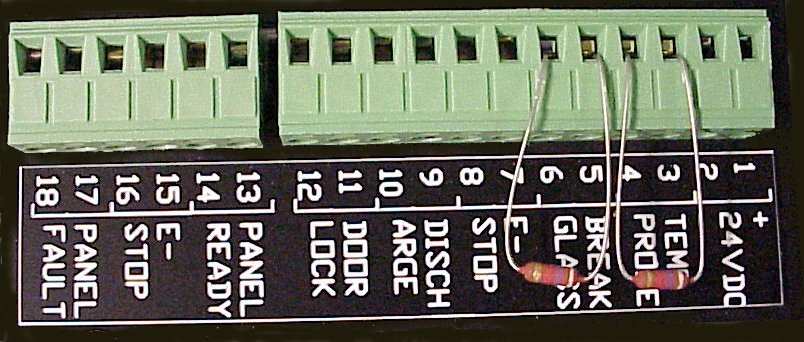

Our special CnC Machine controller (OEM) |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
