FirePak vehicle kit Part Number PVSK-2/3 Kits installed on a Mercedes 560SEL.

Pyrogen is the light weight, smallest, most effective fire suppression system available today. Used for protection of  high priority vehicles, these systems have protected some of the most important people in the world from secondary fire damage.  The Kits are available for every type of armoured vehicle. The kits come complete with hardware, brackets, wiring and our Pyrogen SP-1 alarm and activation system.

FirePak Oil and Gas Industries originally designed these kits exclusively for a a Swiss automobile armourer.  Used in the mid east and  europe these Mercedes have seen extensive use in  eastern Europe.



This generator aimed aft for fuel lines and transmission cooler.

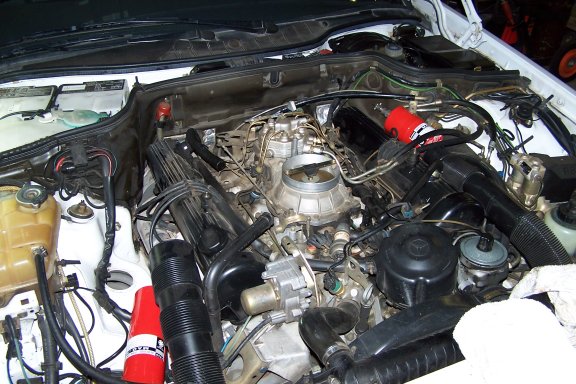

 Left front generator does the engine compartment

FirePak vehicle kit Part Number PVSK-2/3a Kit installed on a Stretch Mercedes 560SEL Limousine.

FirePak vehicle kit part number PVSK-2/3a kit installed on a stretch Mercedes 560SEL. One MAG3 generator is replaced by a MAG5/2 bi-nozzle generator to compensate for the extra weight and the accessories on this applications. An additional Mag1 is located in the boot under the rear deck with the radio communications set and extra battery.  The system is available for all S Class 500 and 600 series Mercedes

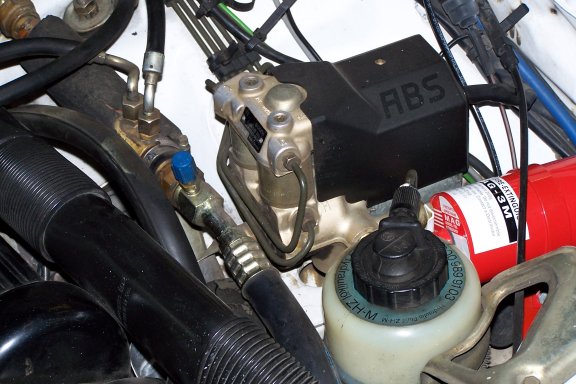

 This heavy kit has an extra large 500g bi-nozzle generator on the right side. This embassy vehicle has a B-6 passenger compartment. The pyrogen suppression for the engine saved 390Kg is armour for the engine section.

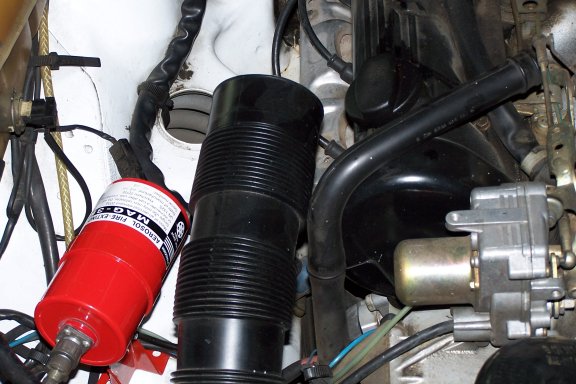

Note the combustion air tubes that allow the intake air to be separate from the engine compartment. This insures the engine is not shut down by the aerosol discharge.


FirePak vehicle kit Part Number PVSK-3/1 Kit installed on a Ford Explorer 4.0 liter V6

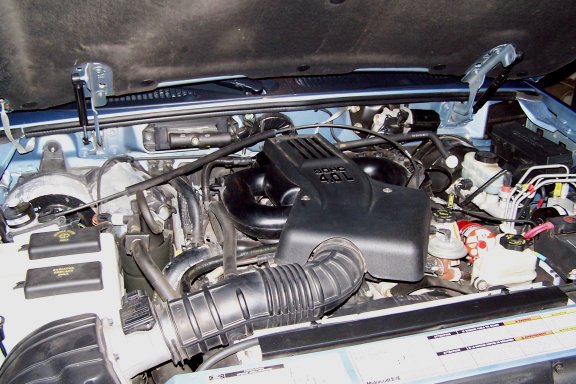

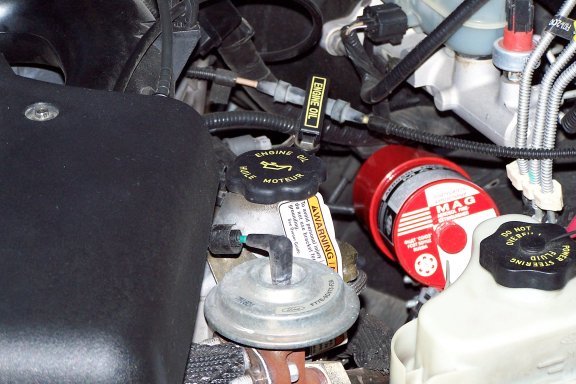

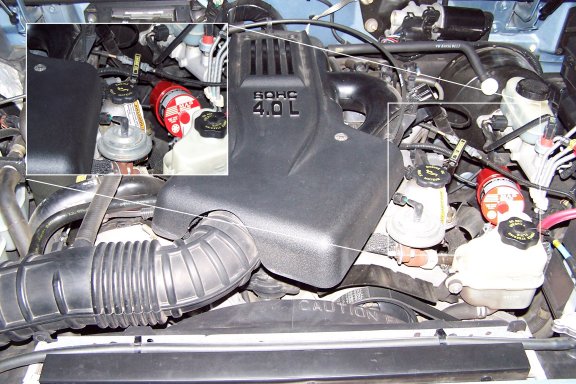

Here is a Ford Explorer 4.0 liter V-6
installation. The MAG generator is
mounted under the anti skid brake valve.
This mounting used the power steering
fluid tank to split the discharge into two
 directions. This allows for a single generator
 to cover both sides of the compartment.


Kits for new and older vehicles, If you are purchasing a pre owned vehicle,  FO&GI can provide you a retrofit fit tailored for your vehicle. We understand that the vehicle need to be non obtrusive and not be obviously modified. Call the Houston Office for details. or contact Kelly Knake at K5 Solutions for details.  We do classics and antiques also.. Protect you investment with the best protection system available today.
